Description

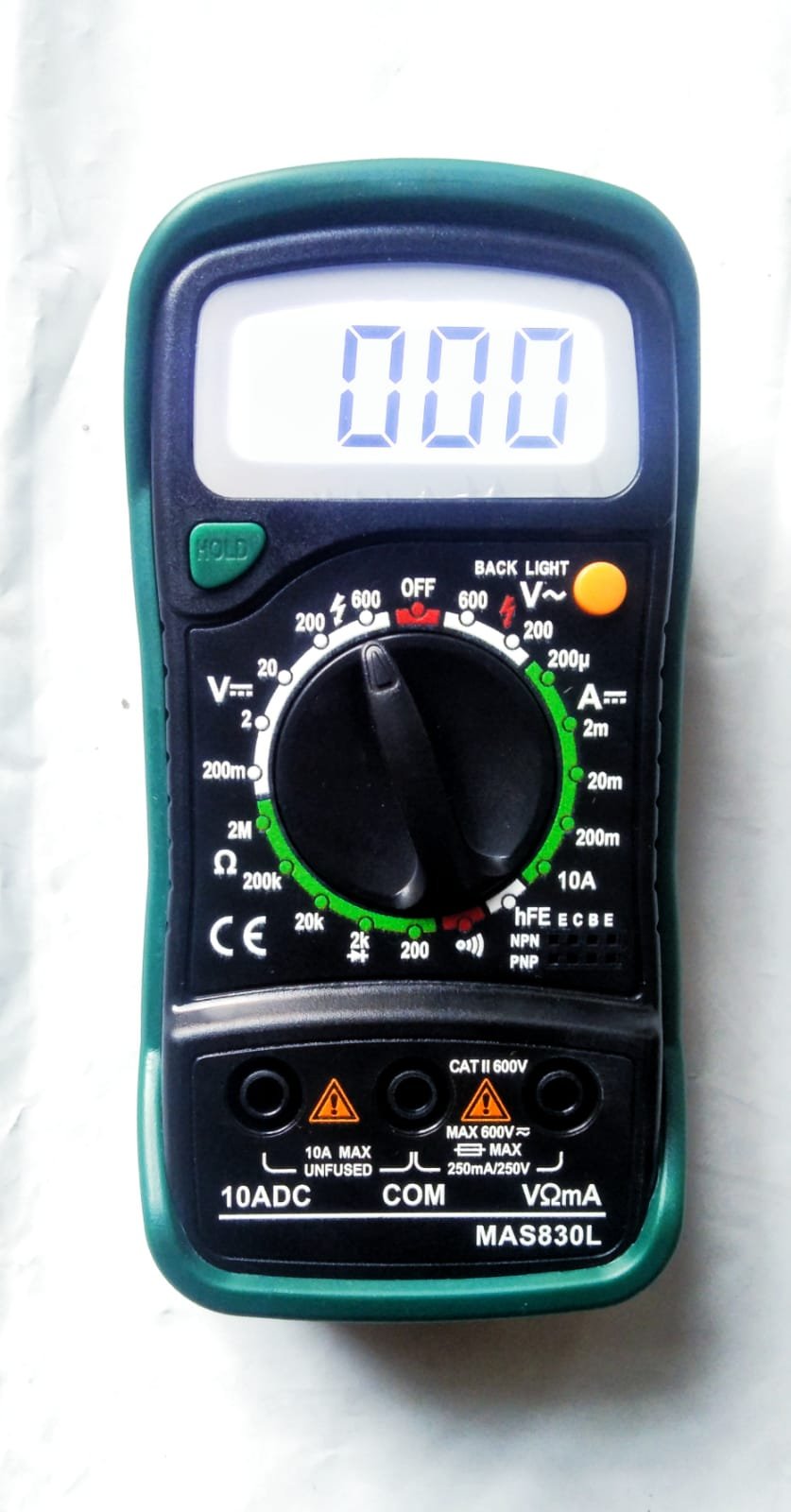

The MAS830L Digital Multimeter is a compact, budget-friendly 3 ½ digit handheld testing tool used for measuring AC/DC voltage, DC current, resistance, and continuity delivery all over pakistan 03447379298
Model : MAS830L
15mm high LCD Display
Max display : 1999, Auto polarity display
Portable and compact design;overload protection on all ranges
Diode assembly test / Transistor P-N junction test/Transistor HFE test
Continuity test with buzzer sound in circuit
Low battery voltage indication
Data hold function

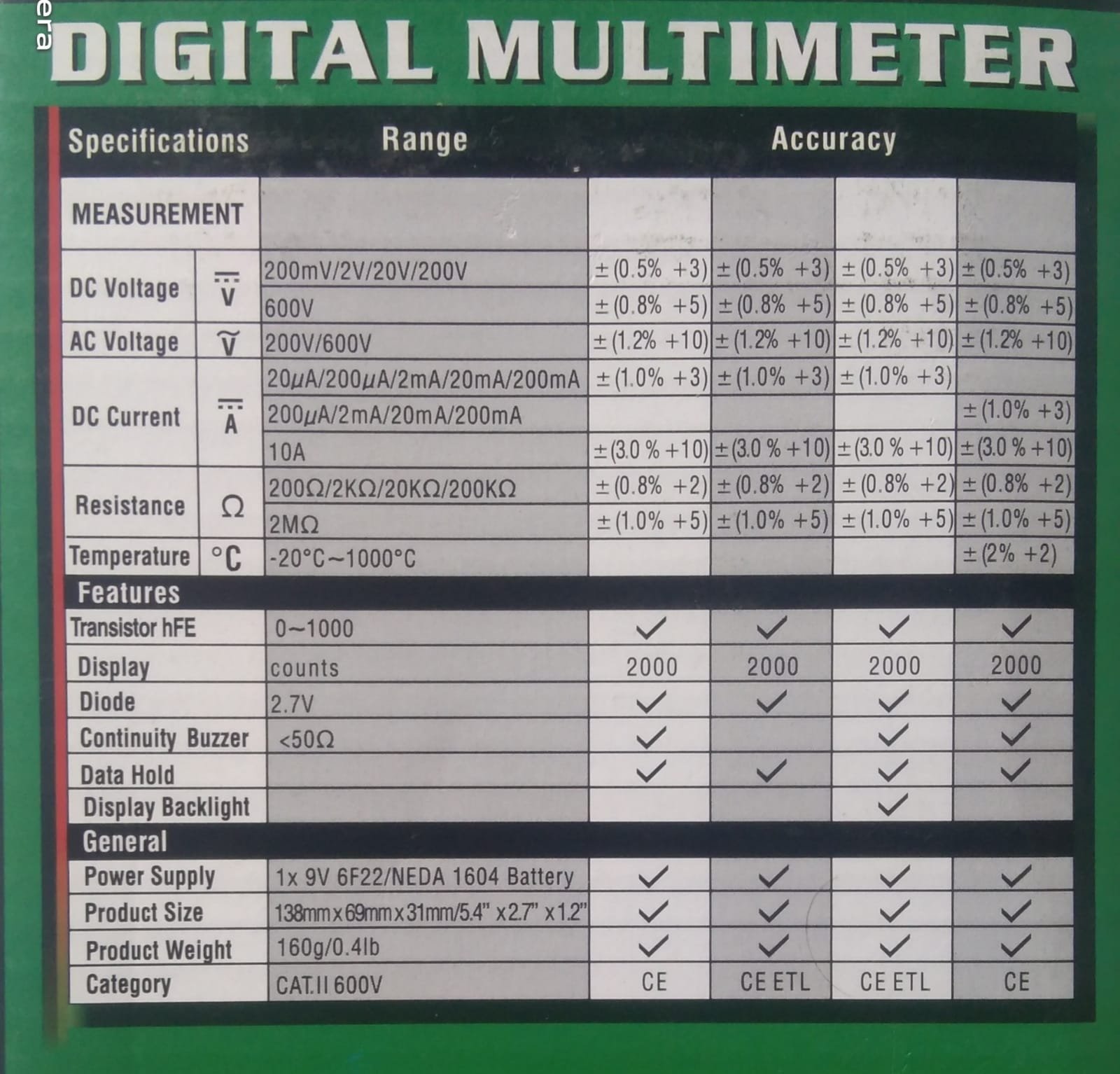

DC Voltage : 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8%
AC Voltage : 200V/600V +- 1.2%
DC Current : 200A, 2mA, 20mA +- 1%, 200mA +- 1.5%, 10A +- 3%
Resistance : 200Ohms,2KOhms, 20KOhms, 200KOhms, 2MOhms +- 0.8%
Display : LCD, 1999 counts
Fuse protection : F-200mA/250V
Operating Temperature : -0C to 40C
Overrange Indication : Only figure “1” on the display
Polarity Indication : “-” displayed for negative polarity
Low Battery Indication : – /+ display
Power by One 9V battery
